Thickness Meter
Managed as per ISO 4042, a Thickness Meter is an essential quality assurance tool for non-destructive measurement of coating thickness on metallic surfaces to ensure the corrosion protection and other functional properties.

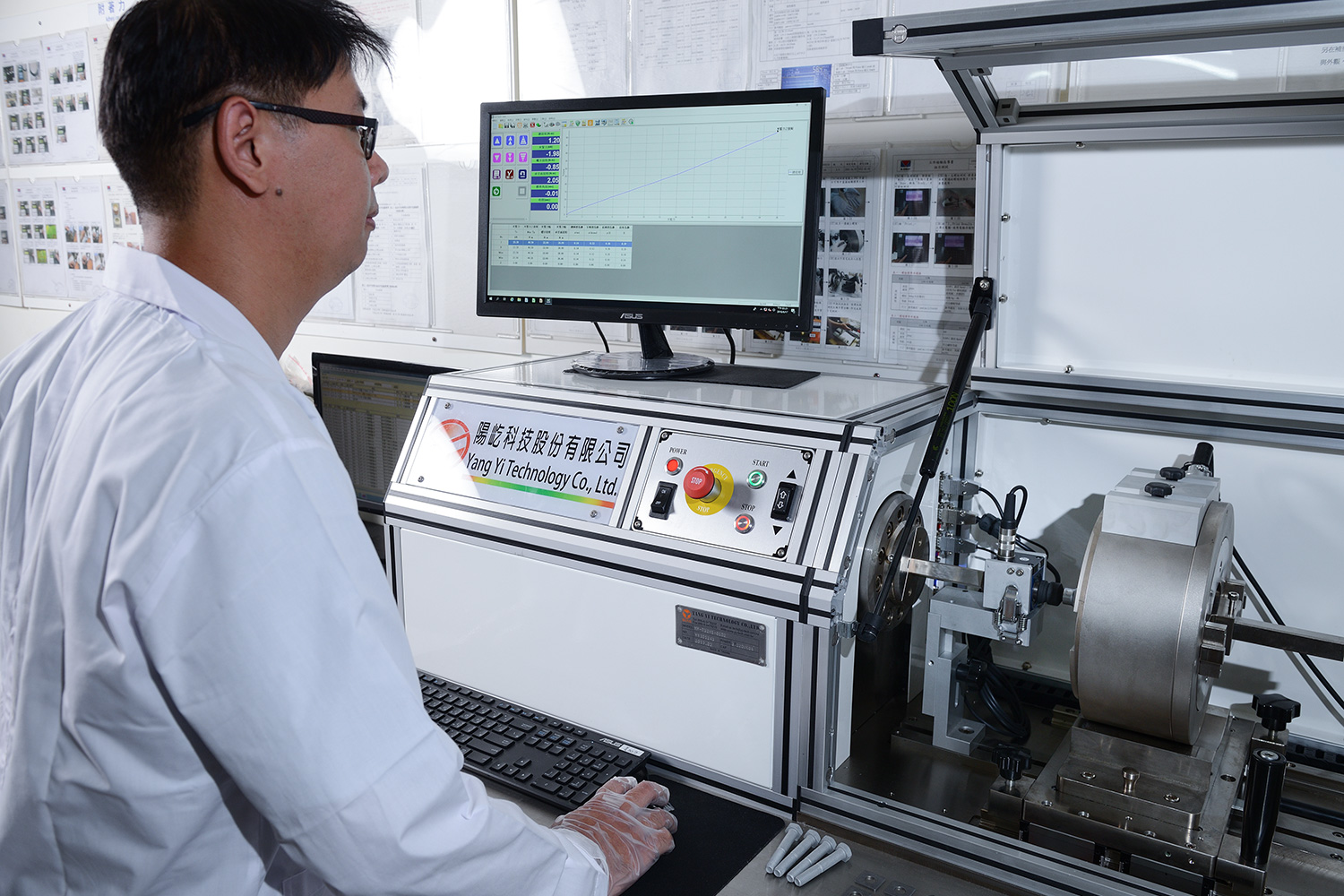

Torque Tension Machine
To determine performance characteristics of a sample component for either material qualification or failure analysis purposes of our products, the Torque Tension Machine is used as per FORD WZ 101, FORD WZ 102, & ISO 16047.

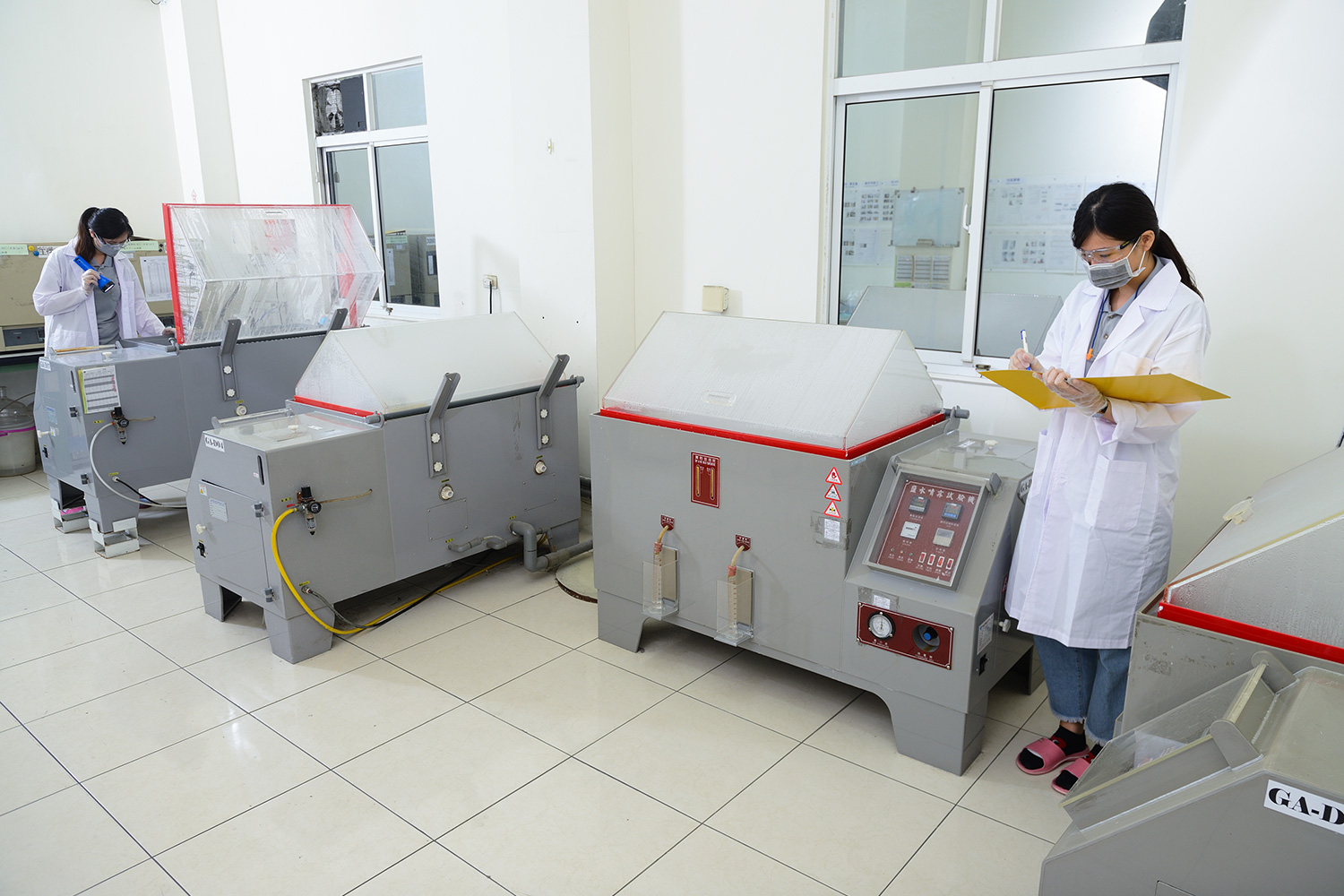

Salt Spray Tester
Aokay perform the salt spray test as per ASTM B117 for checking the corrosion resistance of our products finished with surface coatings.

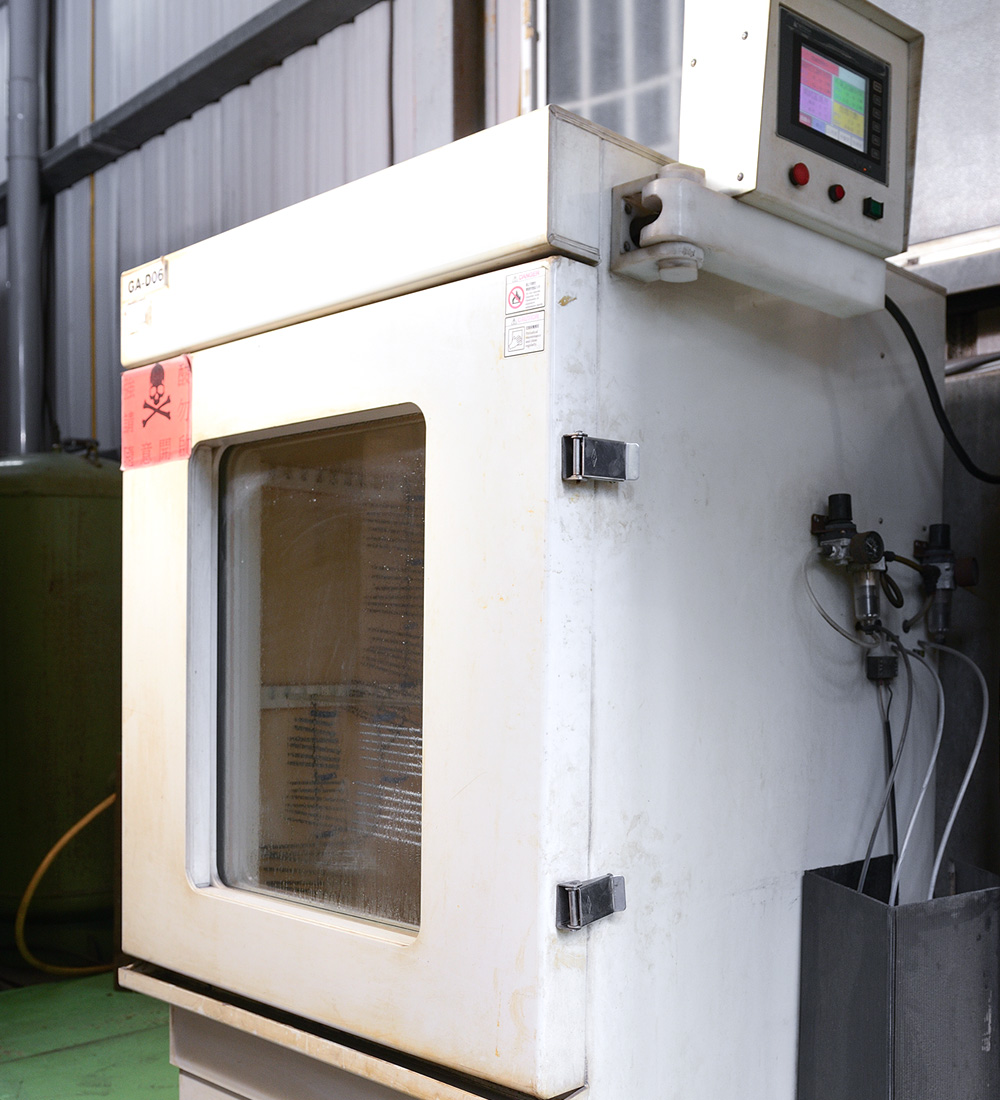

Kesternich Tester
As per DIN 50018 2.0, the Kesternich test was developed to simulate the damaging effects and the corrosive influence of acid rain for both coatings and base materials.

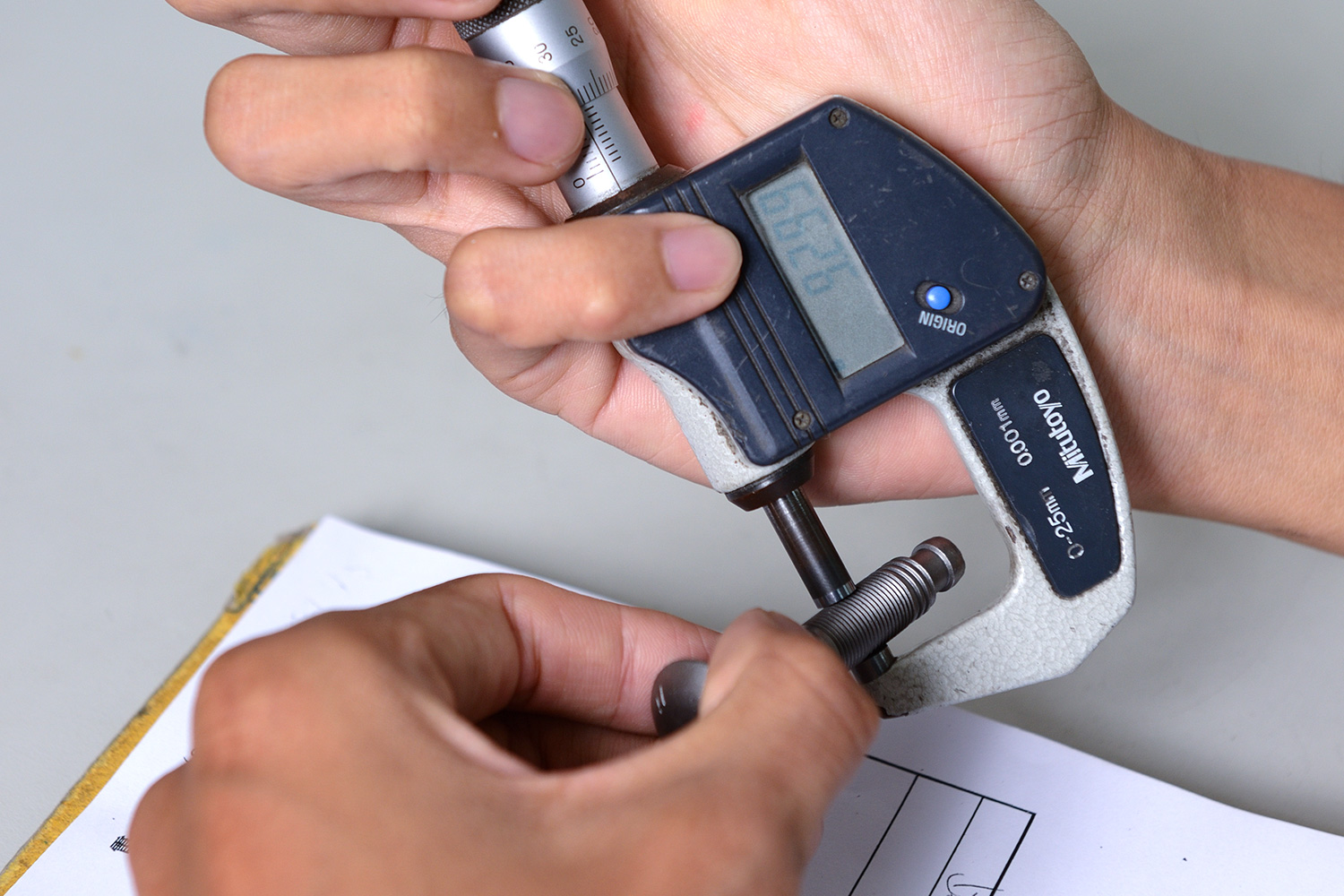

分釐卡
說明 :
將工件放置於鐵砧與測微螺桿之間，旋轉微調旋鈕直到開始空轉時，即可讀取量測數值。
應用 :
依據客戶需求，量測螺絲之牙外徑、對邊等長度，管控產品品質。

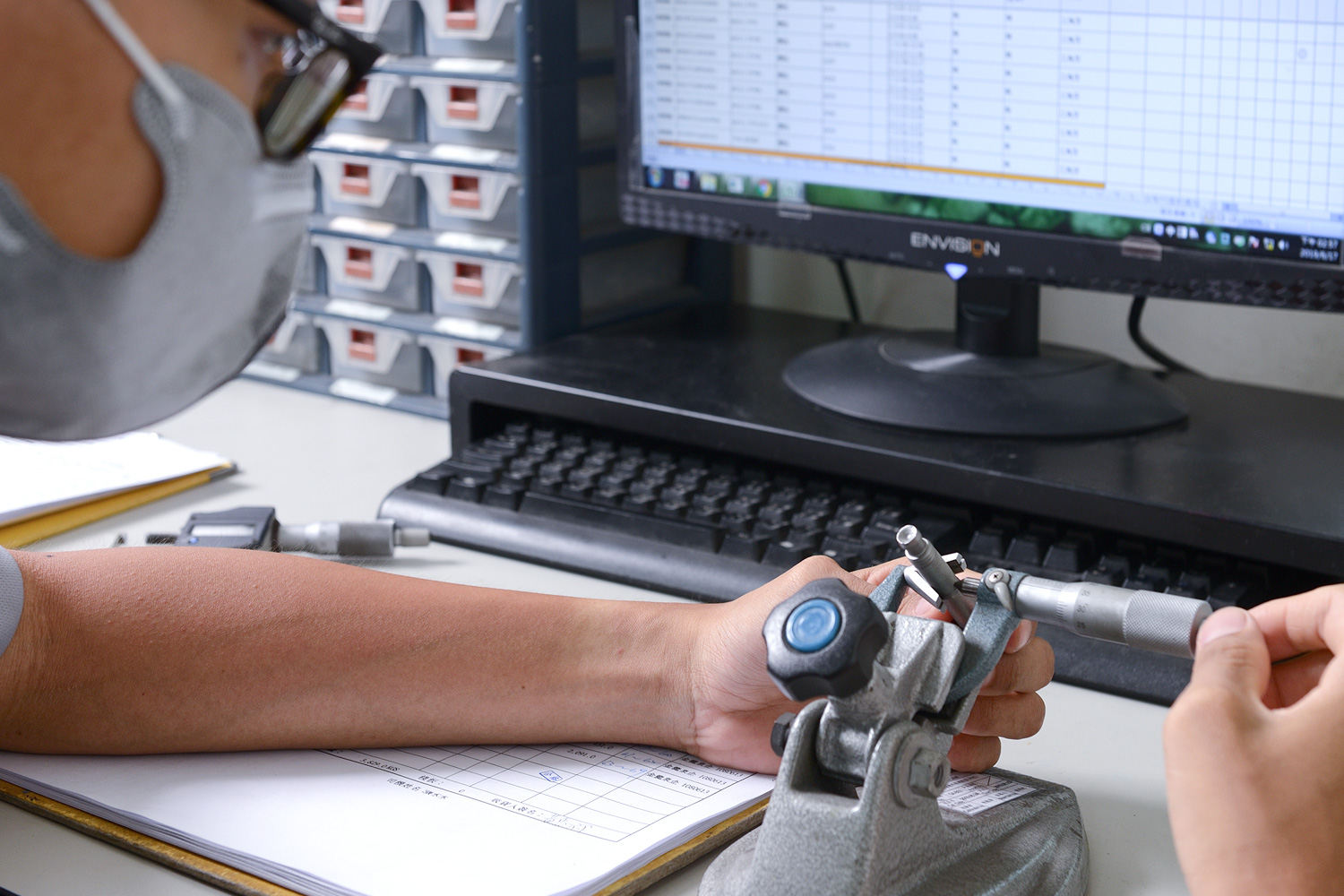

V型溝槽外徑測微器
依據客戶需求，量測螺絲之牙外徑，管控產品品質。
Dimensional Measurement
Dimensional Measurement is included in the IQC before any surface treatments.

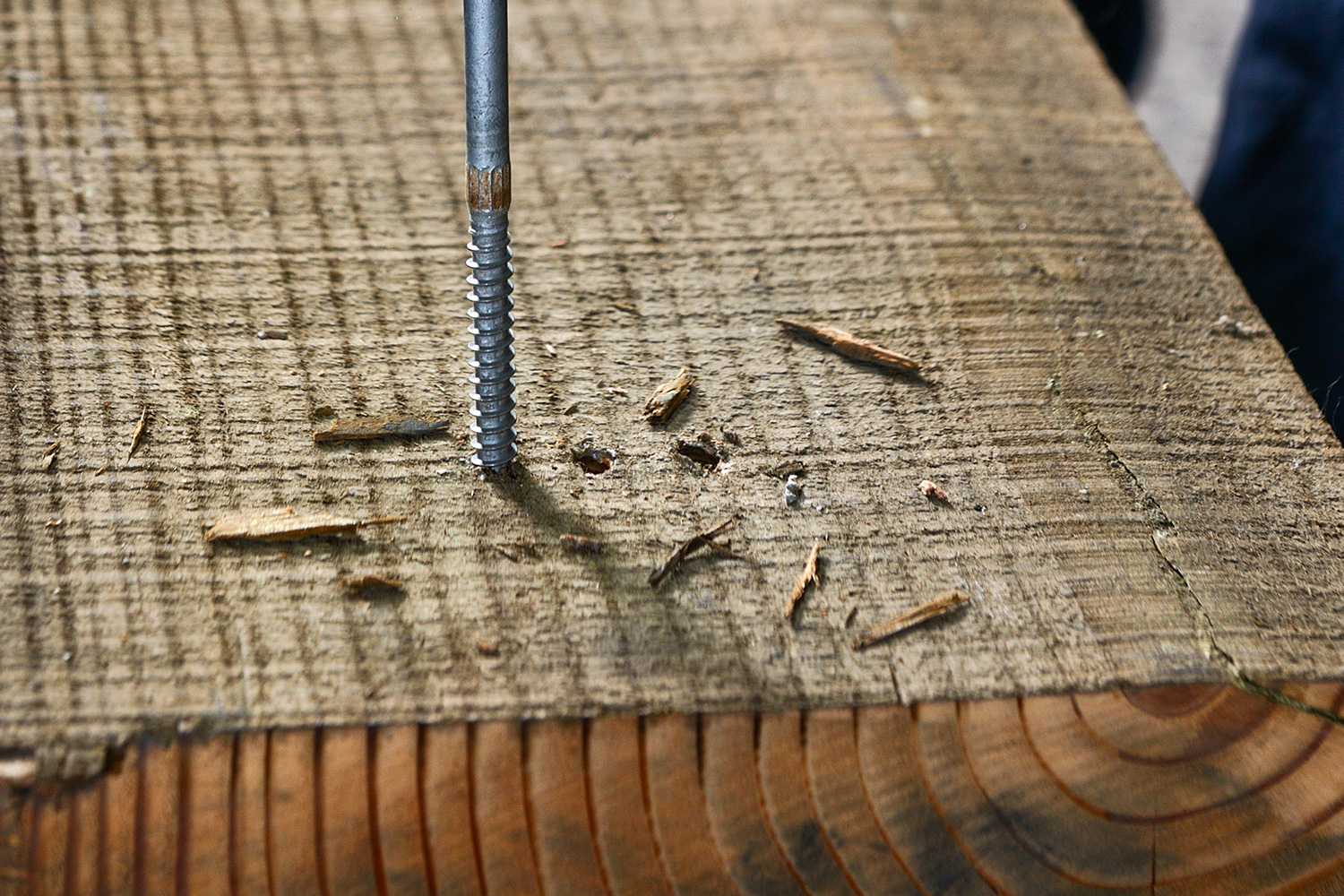

Drive-In Test / Withdrawal Resistance
The test is to determine the vertical withdrawal resistance performance of the structural self-tapping screws in wood which is mainly influenced by the wood density, screw diameter, effective screw length, and type of screw tip.
Solids Analysis
Paints are composed of binders, pigments, fillers, solvents and additives. The Solids Analysis is for verifying the corrosion protection pigments which are for retarding or inhibiting the corrosion reaction after baking, protectind the metal substrate against atmospheric corrosivity.
